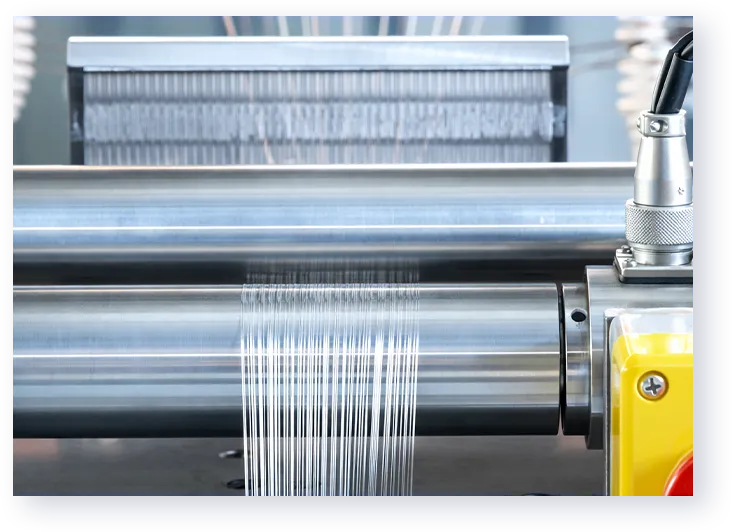

Warping Machine - Hebei Zonghang Machinery Manufacturing Co., Ltd.

Roller diameters from 320 up to max.1200 mm and warp width between 100 until 6000 mm. On request we also deliver the separate warping accessories such as warp spool creel, transport carriage etc.

Features and Application

By the use of the keyboard and the monitor which are installed on the warp cart it is possible to set and control:

Warp tension by load cell
Automatic to calculation the ramp height
Warp speed with indicator meter/min and layers/min
Number of warped turns

Warping Machine Technical Parameter

Machine Type	WB1300
Warping(Weaving) width	1300-2500mm
Wire diameter range	0.02-0.6mm
Maximum Slide Travel	Weaving width + 200mm
Tension Display Accuracy	0.1kg
Running Speed	0-35turns/ mints. 1.5KW reducer motor with the frequency control
Control Model	Buttons + Remote Control + Pedal Switch Motor
