| Wire Crimping Machine | FC101/102C | SK20 | SK40 |
| Name | Wire crimping machine | Full PLC Wire crimping and cutting Machine | Full PLC Wire crimping and cutting Machine |
| Wire diameter | 0.7-2.0mm or 1.5-4.0mm | 1.0-1.0mm | 2.0-14.0mm |
| Wire material | Stainless steel , Spring steel 65Mn | Stainless steel , Spring steel 65Mn | Stainless steel , Spring steel 65Mn |
| Maximum speed | 30mtrs/mints | 30-45mtrs/mints | 20mtrs/mints |
| Main motor | 3.0KW | Main servo motor 4.0KWx2 Cutter servo motor: 2.2KW Height Adjust servo motor: 1.5KW | Main servo motor 7.5KWx2 Cutter servo motor: 3.0KW Height Adjust servo motor: 1.5KW |
| Crimping wheel OD | 120-130mm | 240-340mm | 330-380mm |
| Machine Size | 1300*1100*1280mm | 1200x1800x1500mm | 1200x2000x1500mm |
Can't find the Automatic Wire Crimping Machine you need?
Contact us today and let us provide a better solution for you.

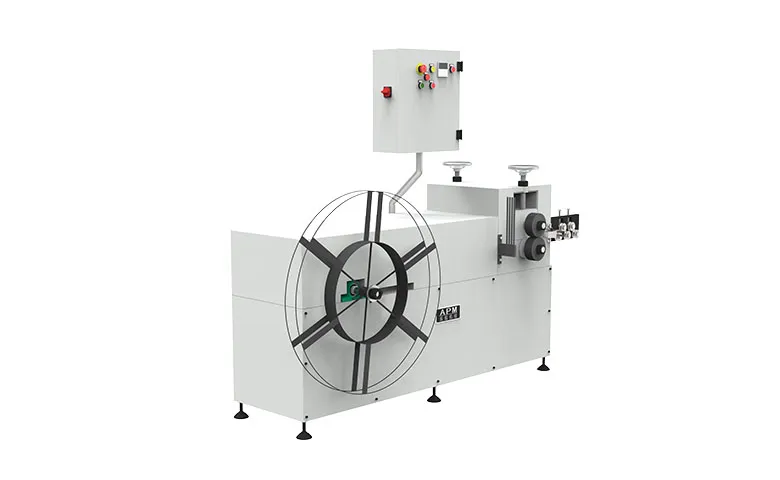

Type: APM-FC101/102C
Wire Diameter: 0.7-2.0 or 4.0mm
Maximum Speed: 30mtr/mints
Main Motor: 1.5KW or 3.0KW
Horizontal &Vertical wire straighteners Crimping Wheel OD: 120-130mm

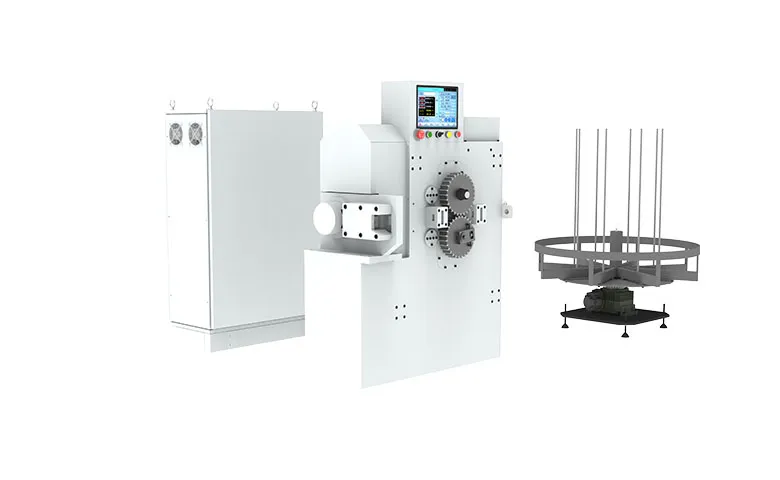

Type: APM-SK20
Wire diameter: 1.0-10.0mm
Maximum speed: 30mtr/mints
Motor: Main Servo Motor 4.0KW*2
Cutter Servo Motor: 2.2KW
Height adjust Servo Motor: 1.5KW
Horizontal &Vertical wire straighteners Crimping Wheel OD: 260-310mm

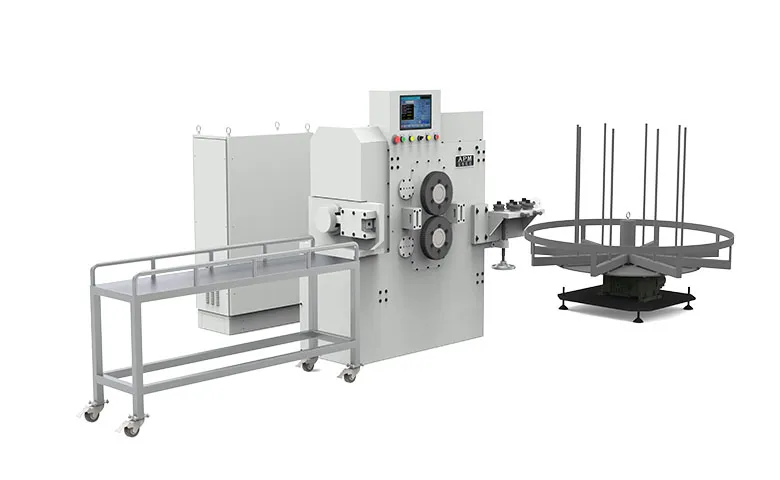

Type: APM-SK40
Wire diameter: 2.0-14mm
Maximum speed: 20mtr/mints
Motor: Main Servo Motor 7.5KW*2
Cutter Servo Motor: 3.0KW
Height adjust Servo Motor: 1.5KW
Horizontal &Vertical wire straighteners Crimping Wheel OD: 330-380mm
Our specialists will guide you to the right solution for your needs.
