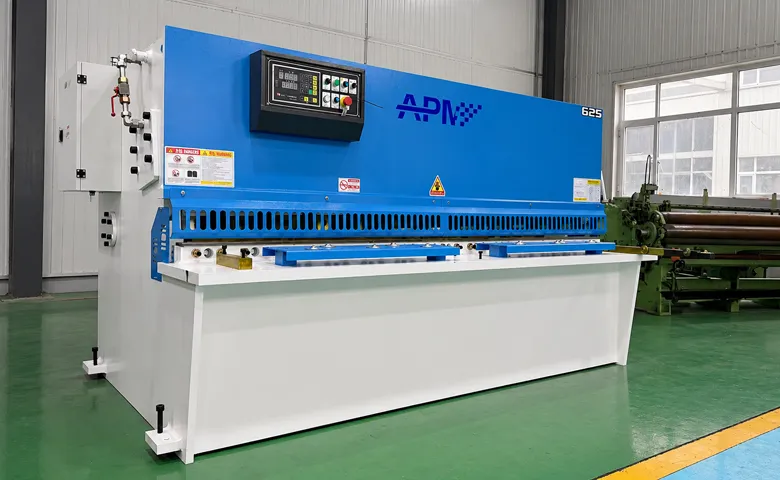

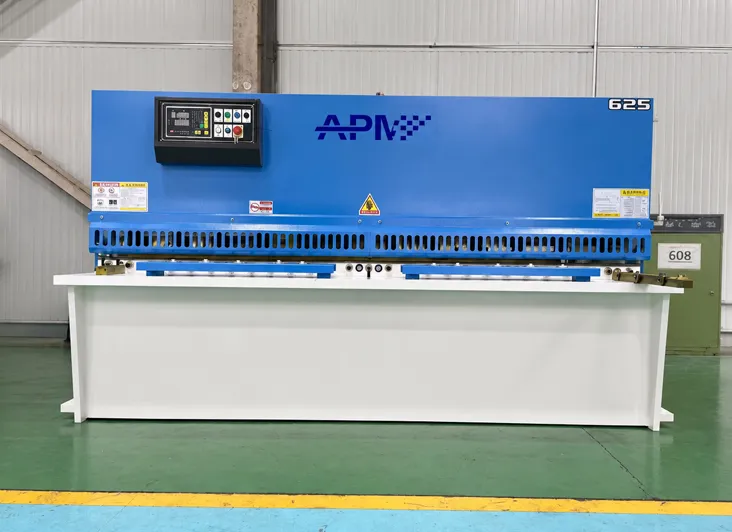

As the trusted auxiliary equipment in APM wire mesh production lines since 1989, our CNC hydraulic guillotine shears deliver burr-free straight cuts on woven mesh panels, 65Mn spring steel wire, and carbon steel plate. Two configurations cover thin-sheet and heavy-plate work alike.
High-Tensile Capability: Shears materials rated 450–900 MPa, including 65Mn wire used in screening mesh.
CNC Back Gauge: MD-11/TP-10 control positions the rear stop across 50–800 mm for fast, repeatable cut lengths.
Adjustable Shear Angle: 0.5°–1.5° rake angle adapts to material thickness, minimizing distortion on mesh and thin sheet.
Durable Tooling: Cr12MoV (H13) blade set (1100 × 100 × 25 mm × 3 pcs) with multiple usable edges per blade.
Stable Hydraulics: High-pressure gear pump, integrated valve block, and twin double-acting cylinders deliver 4–6 strokes/min.

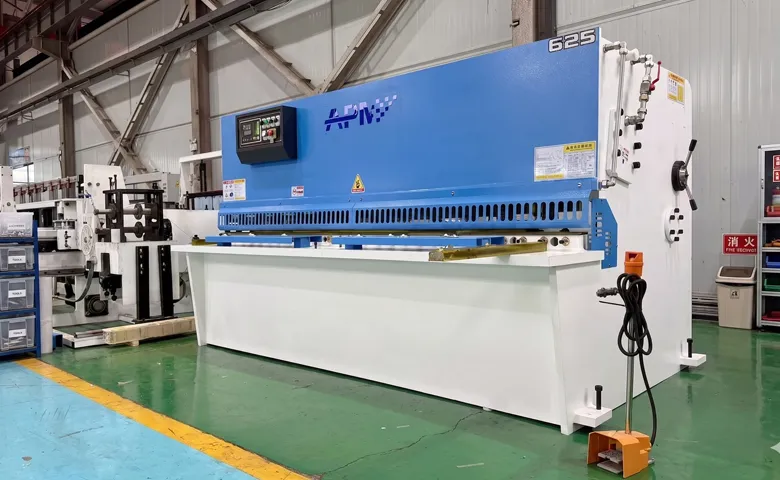

Two Frame Types: Swing beam (QC12K) for economy and easy maintenance; gate type (QC11K) for heavy plate and higher accuracy.
Item | QC12K-8×3200 (Swing Beam) | QC11K-13×3200 (Gate Type) |
Max. plate/wire thickness | 8 mm | 13 mm |
Max. cutting width | 3200 mm | 3200 mm |
Shearing strength | 450–680–900 MPa (incl. 65Mn wire) | 450–680–900 MPa (incl. 65Mn wire) |
Adjustable shear angle | 0.5°–1.5° | 0.5°–1.5° |
Back gauge stroke | 50–800 mm | 50–800 mm |
Stroke rate | 4–6 strokes/min | 4–6 strokes/min |
Column distance | 2260 mm | 2260 mm |
Blade (Cr12MoV/H13) | 1100×100×25 mm, 3 pcs | 1100×100×25 mm, 3 pcs |
Worktable height | 900 mm (500–1000 optional) | 900 mm (500–1000 optional) |
CNC system | MD-11/TP-10, frequency & servo | MD-11/TP-10, frequency & servo |
Main motor | 11 kW, 1440 r/min | 15 kW, 1440 r/min |
Hydraulics | Gear pump ×1, valve block ×1, double-acting cylinders ×2 | Gear pump ×1, valve block ×1, double-acting cylinders ×2 |
Machine size (L×W×H) | 3580×1880×2200 mm | 3580×1880×2200 mm |
QC12K-8×3200 (Swing Beam): The blade beam pivots on bearings — fewer wear parts, simpler maintenance, lower cost. Best for mesh panels and sheet up to 8 mm in wire mesh factories and general fabrication.
QC11K-13×3200 (Gate Type): The blade travels vertically on guide rails, keeping a constant blade angle through the stroke. Best for heavy plate up to 13 mm and precision-critical cutting.
Cutting woven wire mesh and screening panels to length (particle screening, filtration mesh)
Shearing 65Mn spring steel wire for crimped mesh and screen media production
Trimming chain link fence and welded mesh panels
General sheet metal fabrication, enclosures, and structural plate work
