Wire Mesh Stretching Machine

This auxiliary machine helps wire mesh manufacturers reduce manual correction, improve mesh flatness, and keep tension more uniform after weaving. It supports faster finishing, easier rolling, and more consistent product quality, especially for wider mesh production lines.

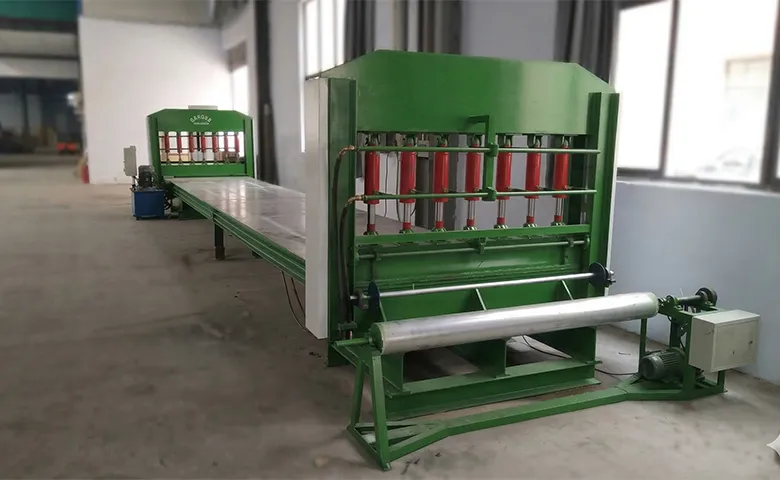

The Hydraulic Wire Mesh Stretching Machine is an essential auxiliary unit for wide wire weaving lines. With a maximum straightening width of 2100mm, it helps flatten woven mesh, improve tension consistency, and reduce manual correction after weaving.

It is well suited for 1300mm, 1600mm, and 2000mm weaving machines, making downstream rolling, cutting, and handling more efficient and stable.

Punching Machine Technical Parameter

Type	APM-HLW2100
Maximum Straightening Width	2100mm for both 1300 or 1600 or 2000mm weaving machine
Power ( Ton)	One side: 8*8Tons=56Tons both side total 16 hydraulic cylinders
Power ( Ton)	Pull side:4x12.5tons=50Tons Moving distance 700mm
Flat table	2100mmx10500mm
Motor	7.5Kwa
Roller motor power	1.5Kwa
Weight	5200KG
Outside size (LXWxH)	230020001800mm*2sets
Motor	Chinese famous brand
Voltage transformer	DELIXI
Circuit breaker	Schneider
Electrical relay	Schneider
Contactor	Schneider
Remote control	Yuding Taiwan
The electromagnetic valve	Rexroth
hydraulic pump	Yuken(Japan)
Hydraulic cylinder	Rexroth
