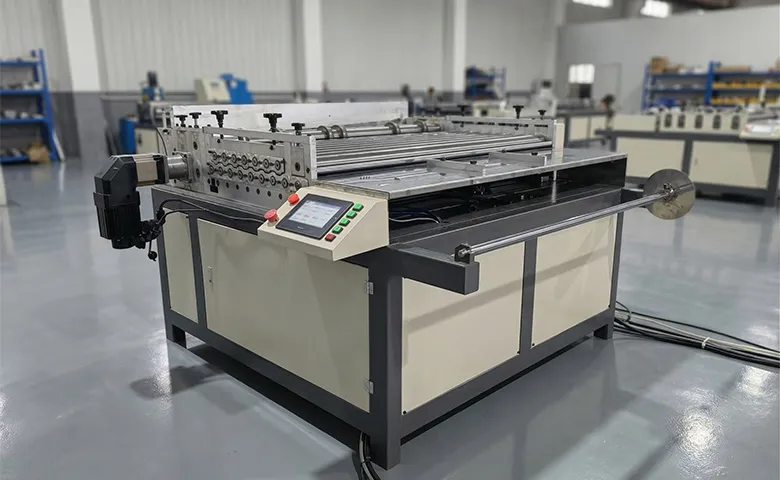

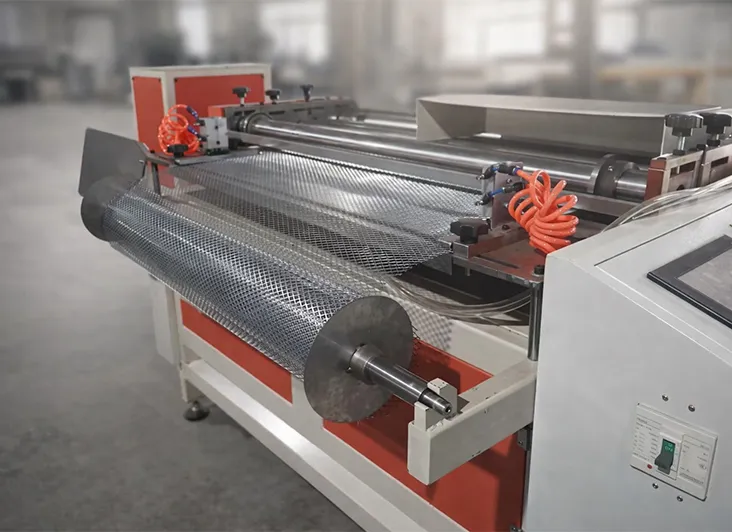

APM machines provide precise, automated slitting and cutting for industrial wire mesh production.
• Precise Slitting: Adjustable slitting widths from 30mm to 2000mm.
• Automated Efficiency: Servo-controlled automation for synchronized cutting and slitting.
• Material Versatility: Processes mesh with 0.3mm to 1.0mm thickness.Customized Output: Produces mesh strips between 60mm and 250mm.
• High-Speed Stability: Operates at 80 rpm for consistent output.
Machine Type | APM-SHM1300Cor1600C | APM-SHM1300Cor1600C | APM-SCM1300C or 1600C |
Slitting width | Minimum width 60 mm to 250 mm | Minimum width 60 mm to 250 mm | 40mm-1600mm |
Cutter | 5 sets | 5 sets | — |
Motor | 1.5KWA 380Vor420V,3 phase or 2.0KWA 220V 1phase | 1.5KWA 380V,3 phase or 2.0KWA 220V 1phase | 1.2KWAx2 |
Reducer | 1 | 1 | — |
Minimum width | 30mm and Maximum 2000mm | 30mm and Maximum 1250mm | — |
Machine size | 2000mm*1500mm*1000mm(W*L*H) | 2000mm*1500mm*1000mm(W*L*H) | 2270x1550x1300mm(W*L*H) |
Speed | 80 rpm | 80 rpm | — |
Weight | about 540Kgs | about 620Kgs | 1600kgs |
No. of cutting blades | 5 sets | 5 sets | — |
Thickness of wire mesh | <1mm | <1mm | — |
Our specialists will guide you to the right solution for your needs.
