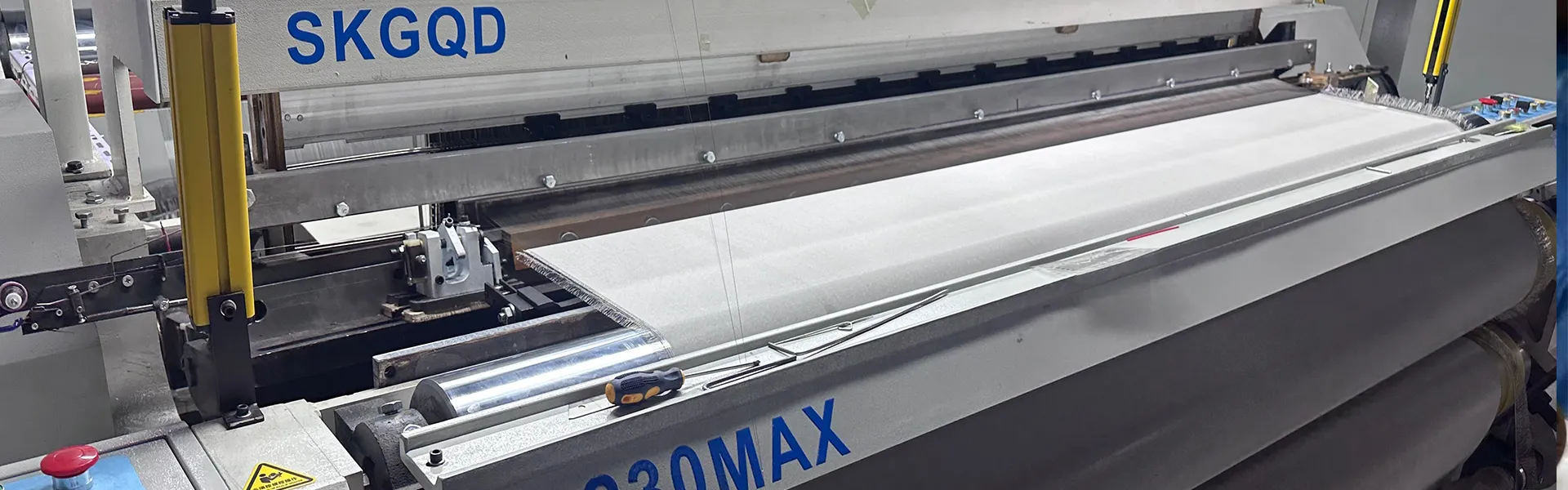

Shuttleless Wire Mesh Weaving Machine/Loom

The shuttleless wire weaving machine supports weaving widths from 1,300 to 6,300 mm, making it suitable for a wide range of applications in industries such as oil and gas, plastics and chemical processing, food production, pharmaceuticals, and new energy. It can efficiently process a broad variety of materials, including stainless steel, iron, copper, brass, bronze, aluminum, as well as precious metals such as platinum.

General B and B Max QD Q D HD

Product Key Features

Weaving Machine type	B and B Max	QD	Q	D	HD
Weaving Mesh Range (mesh)	PW:40-600 DW: to 2600	PW:8-120 DW: to 300	PW:8-80 DW: to 300	PW:4-60/8-80 DW: to 300	PW:8-600 DW: 20 to 2600
Wire Diameter	<=0.30mm	<=0.35mm	<=0.60mm	<=0.80mm	0.025 to 0.45
Weaving Width	1300mm 1600mm 2000mm Max.2500mm	1300mm 1600mm 2000mm 2500mm	1300mm 1600mm 2000mm 2500mm	1300mm 1600mm 2000mm 2500mm Max6300mm	1300mm 1600mm 2000mm 2500mm
Heddle Frame Number	2&4 or 5 and more	2 &4 or5 and more	2&4	2&4	2&4
Max. beat-up power(NM)	15000N/M	20000N/M	40000N/M	60000N/M	20000N/M
Weaving Speed	60-120T/ min	60-120T/ min	60-90T/ min	20-70T/ min	60-150T/ min
Shedding Mechanism	Cam motion or AC Server Dobby
Wef t Wire Insertion	The carbon fiber or nylon rapier with AC servo mechanism that keeps the weft wire under tension
Let - off / Take-up Mechanism	The weaving machines are differentiated by the servo motor and reducer speed ratio
Weaving Tensile Control	Display digitally

Can't find the right wire weaving machine?

Get a quote

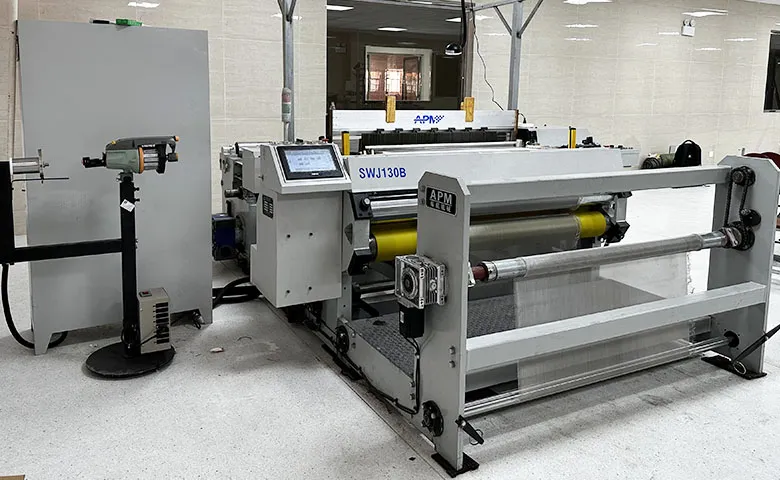

B and B MAX-PLC Bus Light Wire Weaving Machine

The machine adopts PLC programmable control system, through the servo motor control cloth take-up, warp let-off, weft insertion and Shedding if have the professional reqeust.

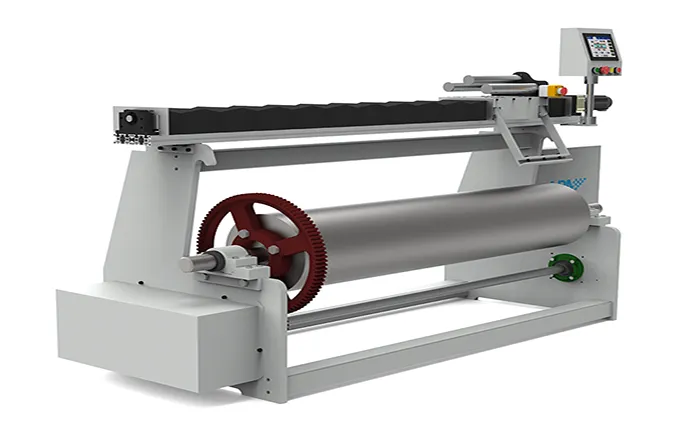

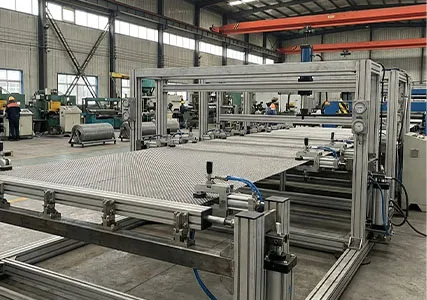

Warping Machine Wire Mesh Slitting Machine Punching Machine Wire Mesh Stretching Machine Wire Mesh Cutting Machine Wire Mesh Bending Machine

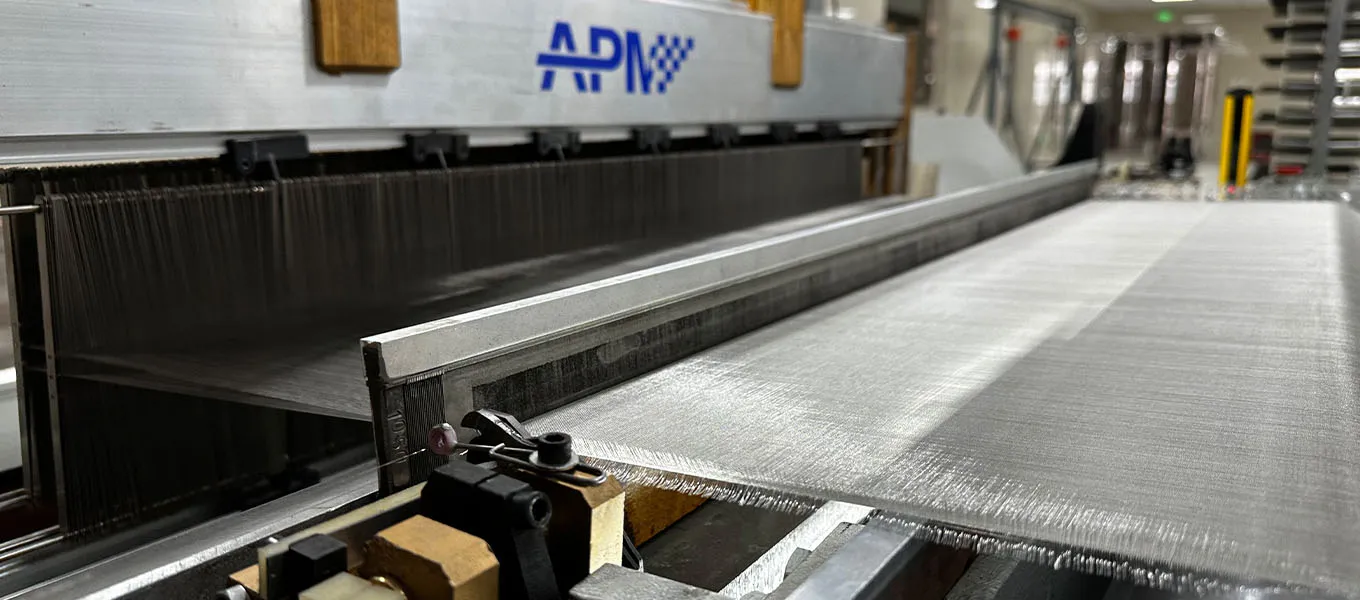

Key Features of the NC Light Wire Weaving Machine

The machine adopts PLC programmable control system, through the servo motor control cloth take-up and warp let-off, to realize the automatic adjustment of weaving tension and electronic display.
Servo dobby and high performance servo direct drive weft insertion design, so that the operation is more stable to achieve high precision, fast speed, low noise, wide weaving range, various types.
We can weave stainless steel, iron, copper, aluminum, silver and other metal and alloy materials of wire. This type of machine is mainly used for weaving precision metal mesh for special screen printing levels, and can meet the technical requirements of screen printing applications in the electronic and optoelectronic industries.

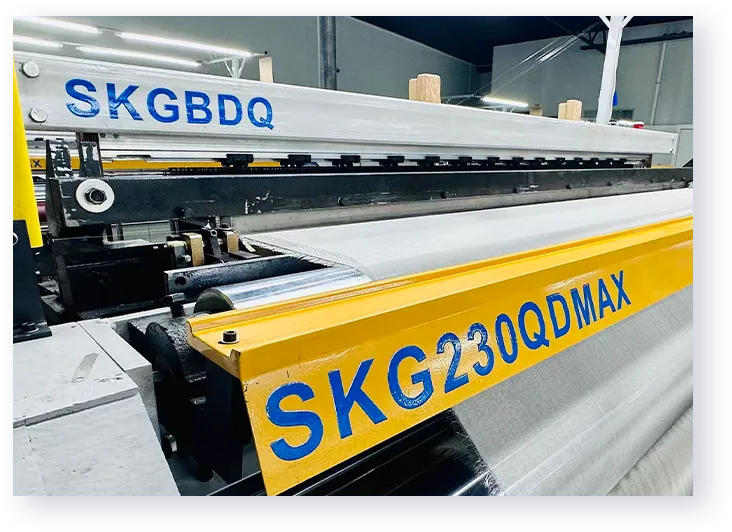

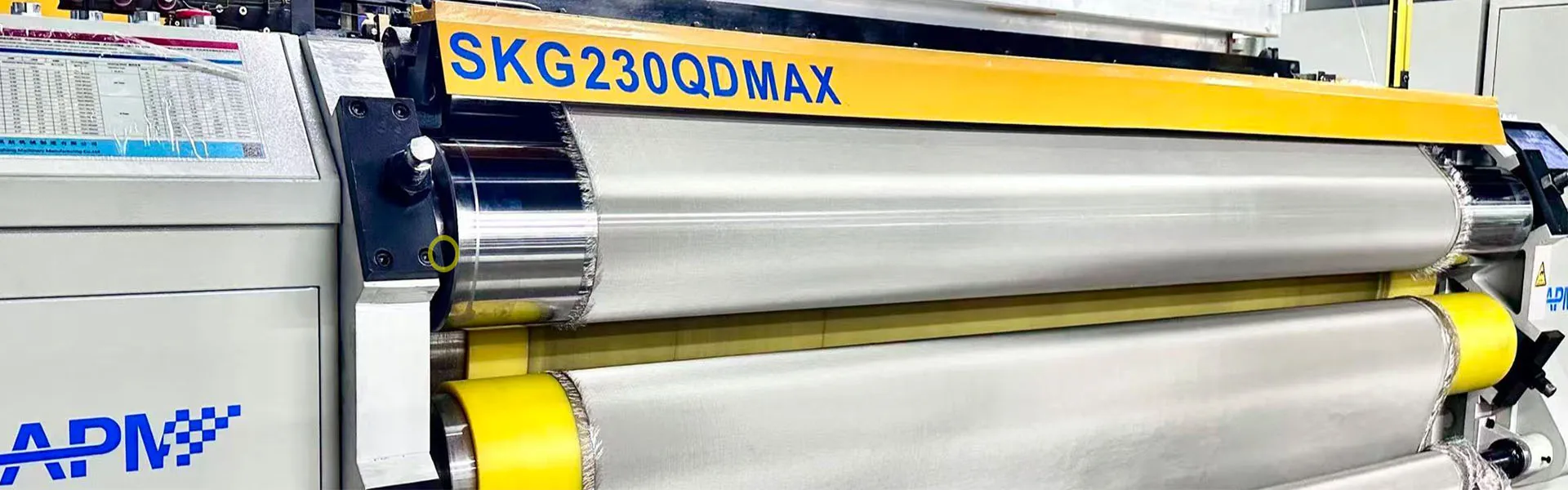

QD-PLC Bus Middle Heavy Wire Weaving Machine

The machine adopts PLC programmable control system, through the servo motor control cloth take-up and warp let-off, to achieve automatic adjustment of weaving tension and electronic display, the use of crankshaft beating-up and cams shedding mechanism, high performance servo direct drive weft insertion and limitless cloth take up mechanism, digital display cloth length, not only meet the characteristics of the machine, but also can shorten the auxiliary weaving time. We can weave stainless steel, iron, copper, alumi-num, silver and other metal and alloy materials of wire, The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas filtration and solid particle screening.

Q-PLC Bus Heavy Wire Weaving Machine

The machine adopts PLC programmable control system,through the servo motor control cloth take-up and warp let-off, to achieve automatic adjustment of weaving tension and electronic display, the use of crankshaft beating-up and cams shedding mechanism, high performance servo direct drive weft insertion and limitless cloth take up mechanism, digital display cloth length, not only meet the characteristics of the machine, but also can shorten the auxiliary weav-ing time. We can weave stainless steel,iron, copper, aluminum, silver and other metal and alloy-materials of wire.The woven metal mesh is widely used in petroleum, chemical, machinery, mili-tary, aerospace and other industrial sectors of liquid, gas filtration and solid particle screening.

D-Diy Heavy Full Plc Control Weaving Machine

Serves for the production of medium-strong up to the strongest fine weaving. This model is generally arranged for a weaving range of 10-80mesh per inch. but if desired can also be provided with change wheels for adjustment to No 5 per inch. Furthermore the production of Hollander cloth to No 300 is possible by the supply of change wheels for the regulators. However full PLC control are save the progress to change the wheels and servo motor control to come true. Square opening range: 0-200mesh and hollander weaving.

HD-High Speed E-Dobby Wire Weaving Machine

High speed e-dobby wire weaving machine is suitable for weaving screens which used in window screen or filters at the square holes or rectangular holes. The raw material should be low-carbon steel wire, aluminum alloy wire, black iron wire, stainless steel, copper wire and other metal wire.
