Crimped Wire Mesh Weaving Machine

Hebei Zonghang Machinery Manufacturing Co., Ltd is the leading manufacturer in China which specialized in metal.wire weaving machines and crimped wire mesh machines for over 30 years old.

The Weaving looms can do the metal wire from 0.017mm till 12mm and the square fabric range till 600mesh and Hollander cloth till 2600mesh etc.

General F101&F102 S101 H101 SKS102

Product Key Features

Crimped wire mesh machine	F101&F102	S101	H101	SKS102
Crimped wire mesh machine	Full automatic crimped wire mesh machine	Semi-automatic crimped wire mesh machine	Hydraulic crimped wire mesh machine	Full & semi-automatic crimped wire mesh machine
Standard weaving width	1300mm 1600mm 2000mm &2500mm	2000mm &2500mm Maximum 6000mm	2000mm & 2500mm	2000mm & 2500mm
Wire diameter	0.70-4.0mm	2.0-6.0mm	5.0-12.0mm or 8-16mm	1.0-12mm
Net opening width	1.50-25.0mm	3.0-100mm	9.0-100mm	3-100mm
Wire Material	Stainless Steel ,Spring Steel 65mn etc	Stainless Steel ,Spring Steel 65mn etc	Stainless Steel ,Spring Steel 65mn etc	Stainless Steel ,Spring Steel 65mn etc

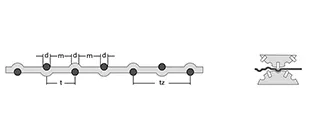

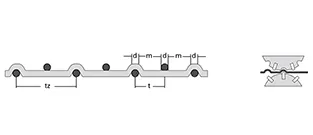

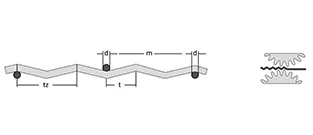

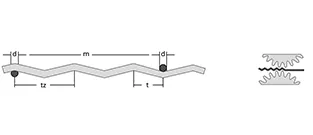

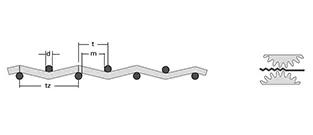

Weaving type	Double crimped, Inter crimped,	Double crimped, Inter crimped, Lock crimped and Flat top crimped	Double crimped, Inter crimped, Lock crimped and Flat top crimped	Double crimped, Inter crimped, Lock crimped and Flat top crimped
Weft insertion	Single servo motor	by hand	by hand	Separate wire crimping machine or by hand
Heddle frame	Servo motor control 2pcs	cams control 2pcs only	hydraulic motor control 2pcs or 4pcs	4 pcs for selft-clerning screen or 2pcs *2.3KW
Weft wire crimping machine	Separate wire crimping machine by servo motor	same wire crimping machine	same wire crimping machine	Separate wire crimping machine or by hand
Weaving Speed	30-60times per minute	15-30times per minute	15-30times per minute	30-50times per minute
Main motor	4.0KW or 5.5KW	4.5KW &2.2KW	5.5KW+2.2KW	Servo Motor: 2*11KW
Machine size	Weaving width+1400mmx2200mmx1800mm	Weaving width+500mm +2200mmx1800mm	Weaving width+800mm +2200mmx1800mm	Weaving width+1100mmx2200x1650mm

Do you produce crimped wire mesh for mining applications?

Are you active in the mining and oil & gas sectors?

Do you regularly supply screening solutions?

The APM Crimped Wire Mesh Machine is specifically designed to manufacture a full range of crimped wire meshes for the mining industry—particularly for coal, sand, and stone—as well as for any process that requires efficient screening, vibrating, or sieving.

With machine models capable of producing both fine crimped meshes and heavy-duty screens, you can expand your product range, reduce production costs significantly, and operate with minimal or no labor, giving you a strong competitive advantage in the market.

Get a quote

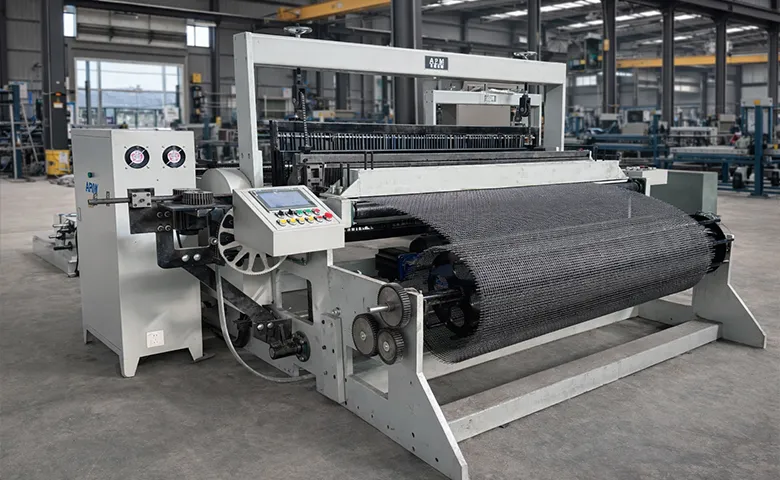

F101&F102 - Full Automatic Crimped Wire Mesh Machine With Cnc Rapier

The advantage numerical control wire mesh weaving loom:

Through adopting the PLC programmable controlling rapier system and controlling cloth reeling and warp feeding by servo motors to satisfied with more fresh buyers who are free from technological dependence.

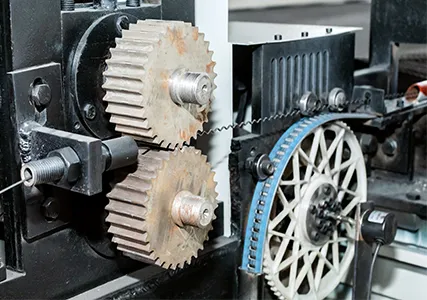

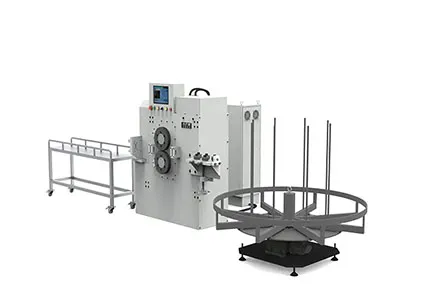

Automatic Wire Crimping Machine Crimping Wheel Wire Mesh Bending Machine Wire Mesh Cutting Machine

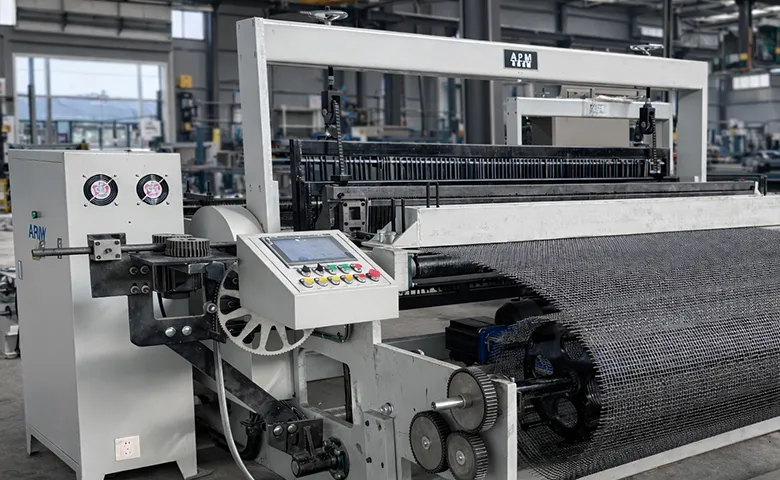

Full automatic crimped wire mesh machine with the PLC Rapier

It divided two types F101 from 0.7-2.0mm pulling weft wire by one servo motor with reducers and F102 1.5-4.0mm pushing weft wire by two servo motors.

This looms can only weave square & rectangular meshes because the slay is moved by a steady stroke crankshaft at the speed 50-60times/mints by frequency control.

Thus the front screen clamp beam’s position must be adjusted by hand as per mesh/wire ratios.

S101-Semi-Automatic Crimped Wire Mesh Machine

Screen assembly machines for the production of fence and security screens.

Weft insertion by hand so that they can be equipped

and adjusted easily and quickly for the various wire sizes, mesh width and screen widths. The weft wire and warp wire was prepared in wire crimping machine.

For these screens, there are a large variety of application, for example, wire baskets of all kinds, guards for machines and lifts, fencing, decorative carriers, vibration screens from wires of high tensile quality in sorting machines. Heater coverings and many others.

H101-Hydraulic Crimped Wire Mesh Machine

Screen assembly machines for the production of heavy sieves with manual weft insertion, the 2 heddle frames have very strong power to lift the high spring wire. It can weave square crimped mesh screen and locked crimped screen.

SKS102-Heavy Automatic Crimped Wire Mesh Machine

This machine is controlled by PLC. Both the heddle frames and the slay beating are controlled by AC servo to do various weave type possibilities such as square, rectangular & harp meshes, all functions are guided and controlled by PLC.

Parameter setting: Wire diameter, Mesh size, Needle diameter, Heddle stroke 120-160mm, Starting point of heddle, the end of reed strokes, weft wire length etc.
