1. wire mesh knitting machineFull Automatic Crimping Mesh Machine APM-AM-F101
Full Automatic Crimped Wire Mesh Machine for production with wire diameter 0.7-2.0mm. Weft insertion by the steel Rapier. It is usually doing double crimped and inter crimped wire mesh.
Specification
| Machine type | Item | Content |
| Main Weaving Machine APM-AM-F101 | Normal Weaving Width | 1300mm & 1600mm |
| Wire diameter range | 0.7-2.0mm | |
| Aperture range | 1.5-25mm | |
| Weaving Speed | 30-50times/min | |
| Motor Power | 380V 50Hz 3Phase 3.0KW | |
| Body Weight | 2500kgs | |
| Outside size: | 3.4x2.2x1.7mtr | |

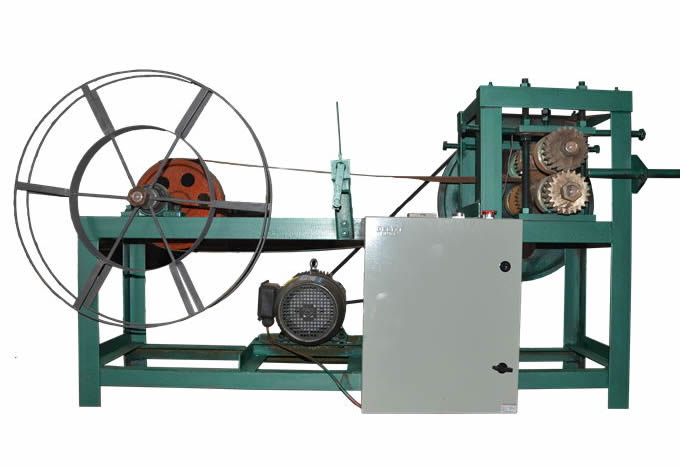

| Accessories Machine APM-AM-FC101 | Wire material | Stainless Steel Middle carbon High carbon (Spring wire) |
| Motor Power | 1.5KW | |
| Crimping Speed | Adjustment freely | |
| Body weight | 450kgs | |
| Outside Size | 1.35mtrx0.7mtrx0.9mtr |
Weaving types
Main Ware Parts- Crimping Wheel
Material: 12CrMnTi
Treating way: Double beating and double annealed; wire cutting crimping wheel by computer.
