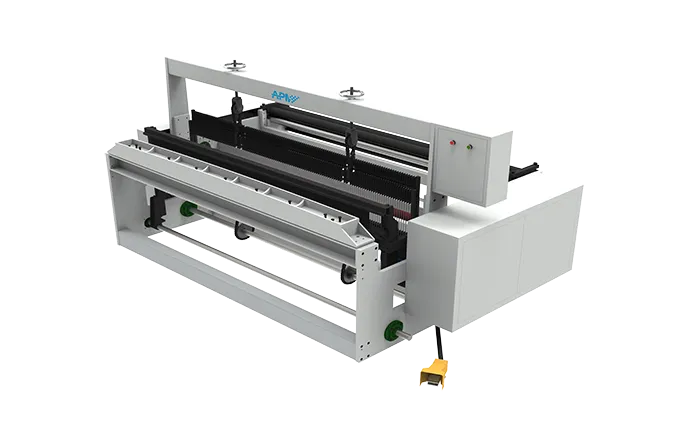

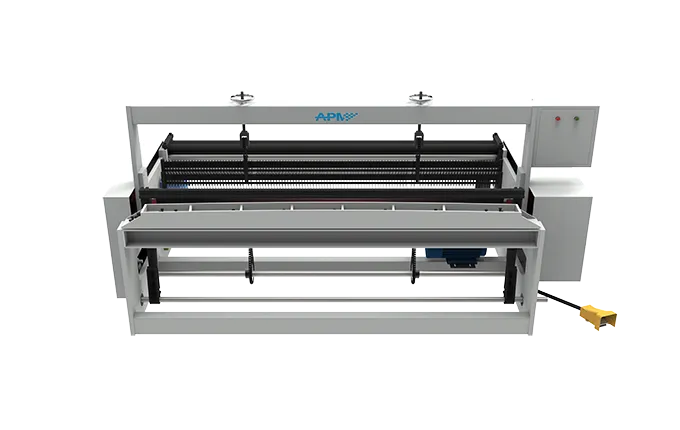

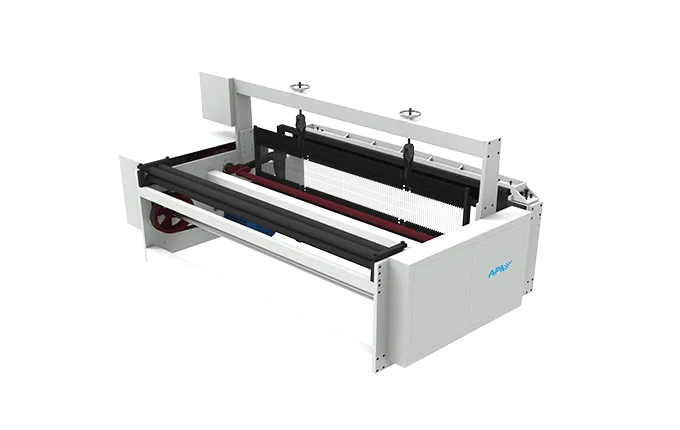

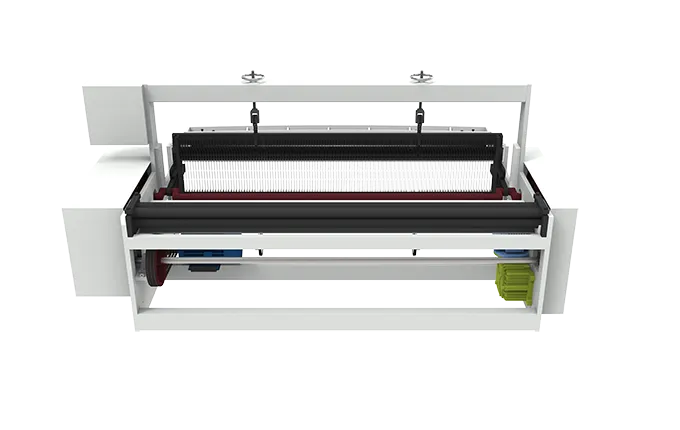

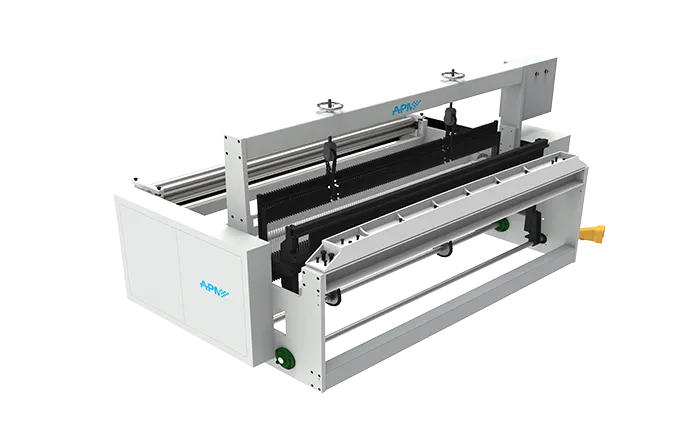

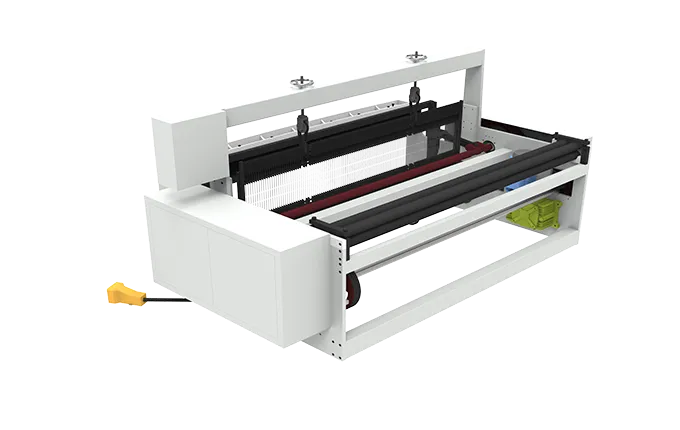

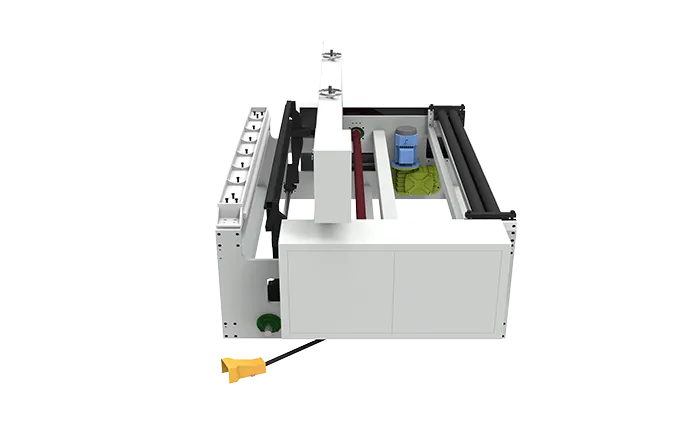

Semi-automatic crimped wire mesh machine S101&H101 with manual weft insertion complete our production program for smaller lot sizes and the production of single items.
| Crimped wire mesh machine | S101 |
| Name | Semi-automatic crimped wire mesh machine |
| Standard weaving width | 2000mm &2500mm Maximum 6000mm |
| Wire diameter | 2.0-6.0mm |
| Net opening width | 3.0-100mm |
| Wire Material | Stainless Steel ,Spring Steel 65mn etc |
| Weaving type | Double crimped, Inter crimped, Lock crimped and Flat top crimped |
| Weft insertion | by hand |
| Heddle frame | cams control 2pcs only |
| Weft wire crimping machine | same wire crimping machine |
| Weaving Speed | 15-30times per minute |
| Main motor | 4.5KW &2.2KW |
| Machine size | Weaving width+500mm +2200mmx1800mm |
Crimped Screen with wires in 1st crimp: t=m+d
Crimped Screen with wires in 3rd crimp: t=1/3(m+d)
Crimped Screen with wires in 5th crimp: t=1/5(m+d)
Pressed Screen, wires pressed both sides: t=m+d
Pressed Screen, wires pressed one side: t=m+d
