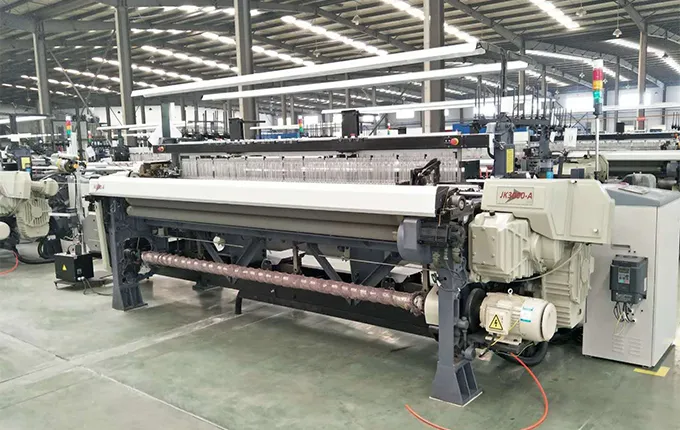

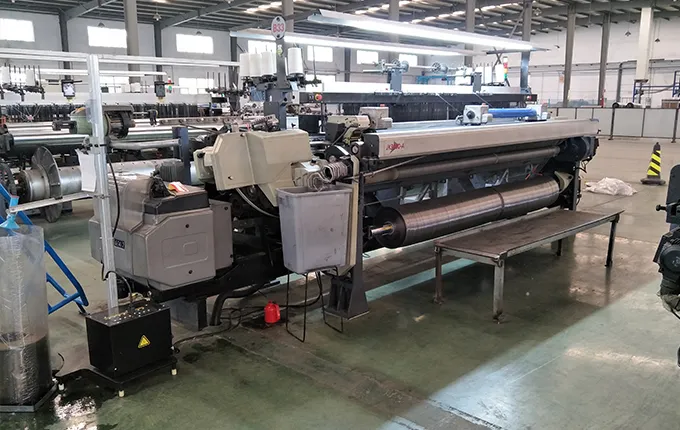

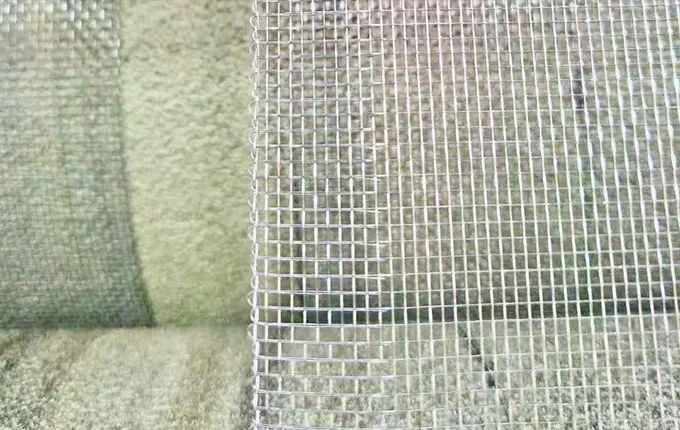

High speed e-dobby wire weaving machine is suitable for weaving screens which used in window screen or filters at the square holes or rectangular holes. The raw material should be low-carbon steel wire, aluminum alloy wire, black iron wire, stainless steel, copper wire and other metal wire.
| Machine type | APM-YK2600 or2800 |
| Standard Weaving Width | 2600mm or 2800mm |
| Wire Material | Stainless steel, Metal steel and Aluminum etc |
| Wire Diameter | SS:0.10mm-0.25mm |
| GI or Aluminum: 0.10-0.35mm | |
| Mesh Range (Plain weave & mesh per inch 25.4mm) | 8-30mesh |
| General Weaving Speed (depending on raw material standard ) | 110-170times per min |
| Weft Wire Insertion | Anti-double wefts function |
| Selvage construction | Optical margin device: A AB B |
| Heddle system | Aluminum heddle frame: 4pcs by the Staubli electronic dobby |
| Sley action | two sides' conjugate cam |
| Take-up & Let-off Mechanism | Servo Motor 1.5KW each better or Machinery by gears |
| Main Motor | 380V 50Hz 3phases 4.5KW . Installing transformer to suitable for 415-440V power too |
| Machine weight | 3450kgs/3650kgs |
| Machine outsize | 3900*1800*1350mm or 4100*2000*1350mm |
| Endless cloth take-up | Installed in the bottom of machine body or separate one |
| Safety Light Curtains | Both side of the beating postion |

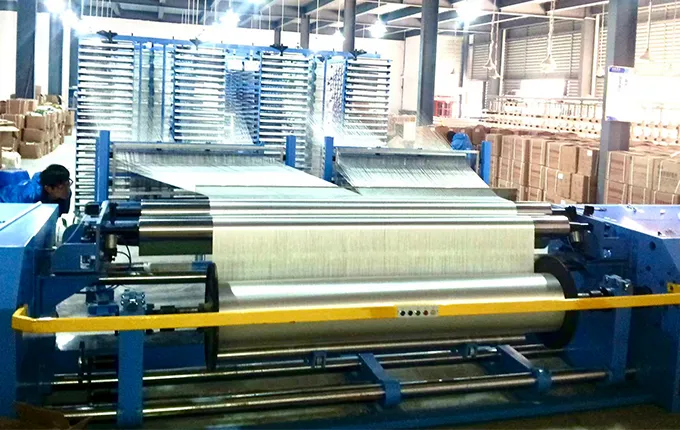

| Warping Machine | |
| Maximum warping width | 2800mm |
| Warping speed | adjustment as the reqeust freely |
| Main Motor | 380V 50Hz 15KW |
| Total Weight | 2800kgs |
| Outside (LxWxH) | 4000x2200x1500mm |

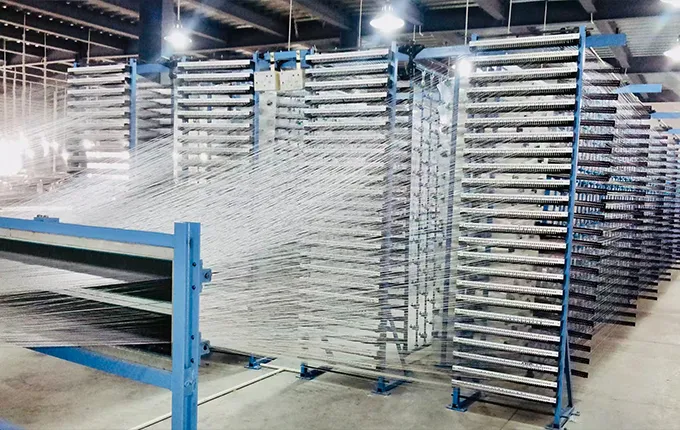

| Spool frames | we shall supply the drawings accordingly to do by yourselves |
