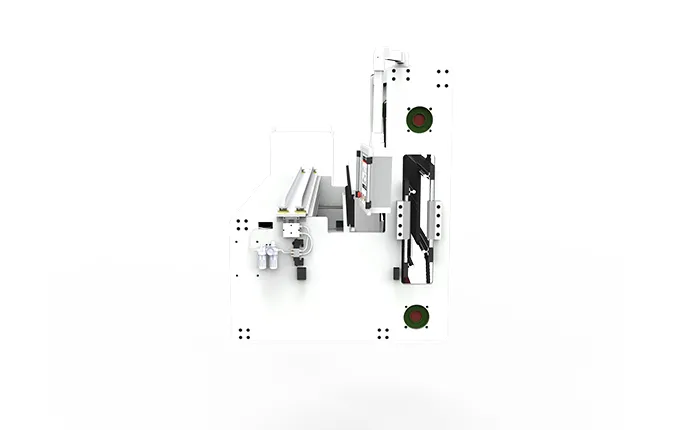

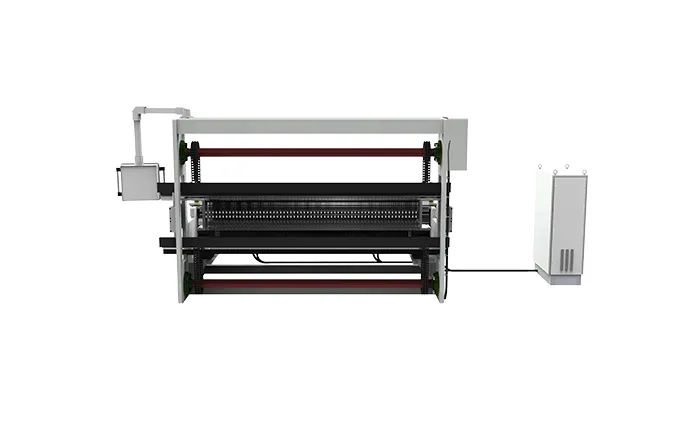

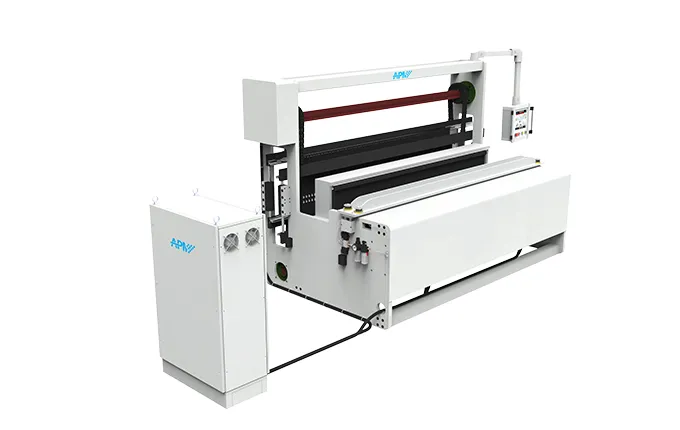

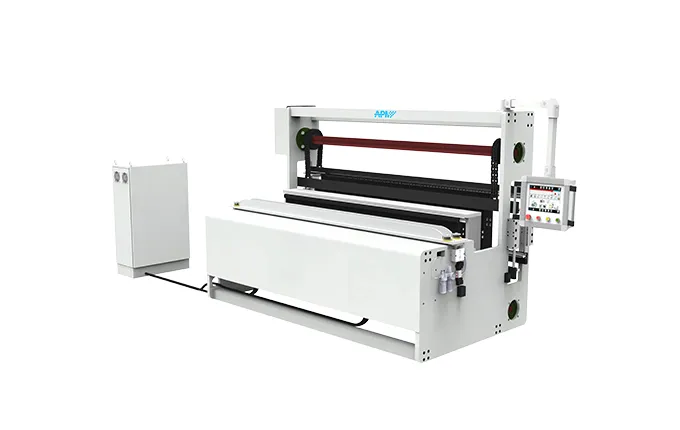

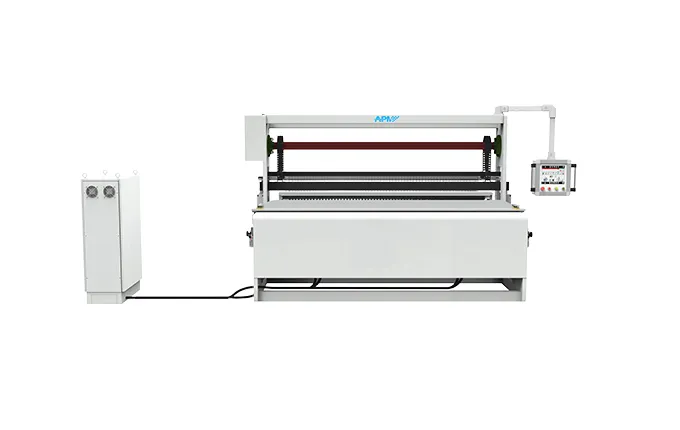

Heavy Automatic crimped wire mesh machines of the type SKS101/102 are very robust weaving machines and cover the entire market of heavy sieve screen. They enable the production of different screen geometries in small to large lot sizes at competitive prices.
| Crimped wire mesh machine | SKS101 | SKS102 |
| Name | Full & semi-automatic crimped wire mesh machine | Full & semi-automatic crimped wire mesh machine |
| Standard weaving width | 2000mm & 2500mm | 2000mm & 2500mm |
| Wire diameter | 2.0-16mm | 1.0-12mm |
| Net opening width | 3.0-100mm | 3-100mm |
| Wire Material | Stainless Steel ,Spring Steel 65mn etc | Stainless Steel ,Spring Steel 65mn etc |
| Weaving type | Double crimped, Inter crimped, Lock crimped and Flat top crimped | Double crimped, Inter crimped, Lock crimped and Flat top crimped |
| Weft insertion | Separate wire crimping machine or by hand | Separate wire crimping machine or by hand |
| Heddle frame | 2pcs *2.3KW | 4 pcs for selft-clerning screen or 2pcs *2.3KW |
| Weft wire crimping machine | Separate wire crimping machine or by hand | Separate wire crimping machine or by hand |
| Weaving Speed | 30-50times per minute | 30-50times per minute |
| Main motor | Servo motor: 2*11KW | Servo Motor: 2*11KW |
| Machine size | Weaving width+1100mmx2200x1650mm | Weaving width+1100mmx2200x1650mm |
Crimped Screen with wires in 1st crimp: t=m+d
Crimped Screen with wires in 3rd crimp: t=1/3(m+d)
Crimped Screen with wires in 5th crimp: t=1/5(m+d)
Pressed Screen, wires pressed both sides: t=m+d
Pressed Screen, wires pressed one side: t=m+d
