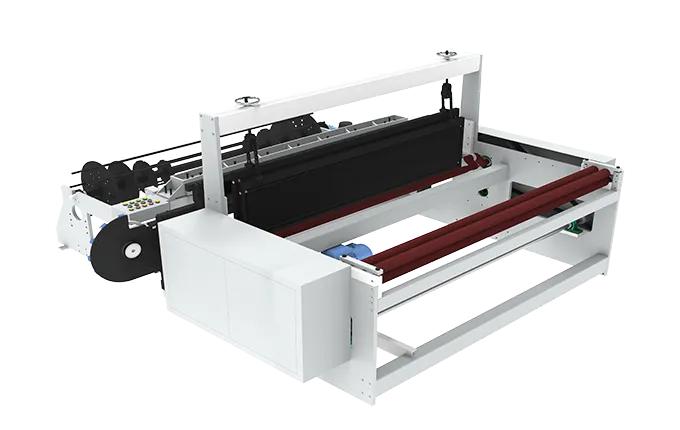

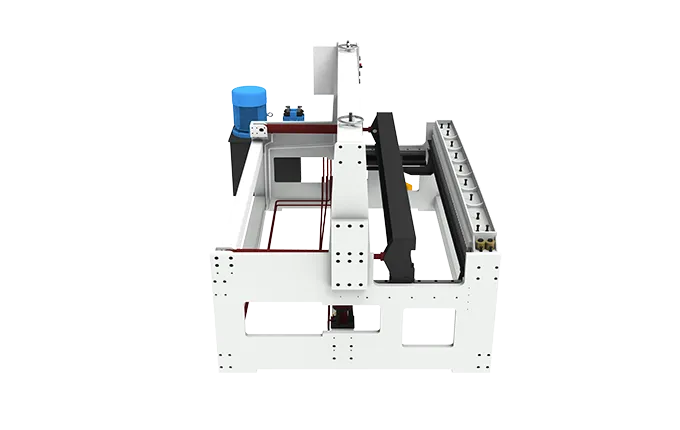

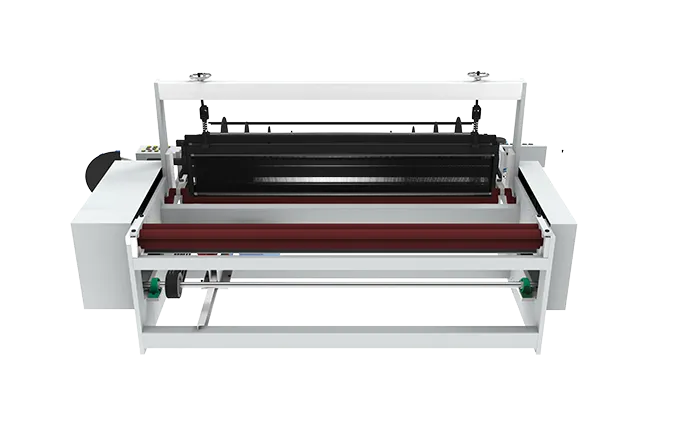

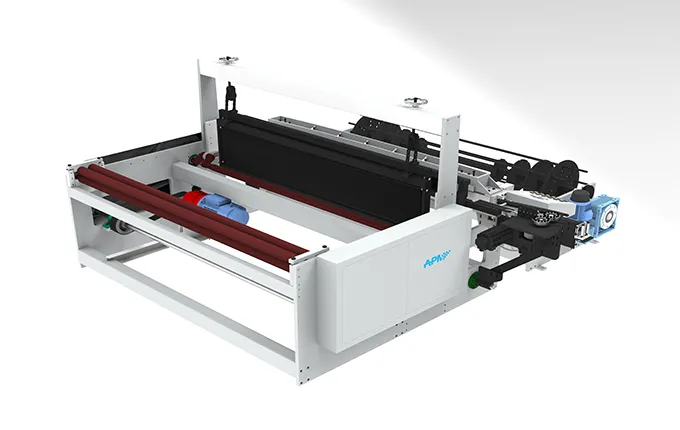

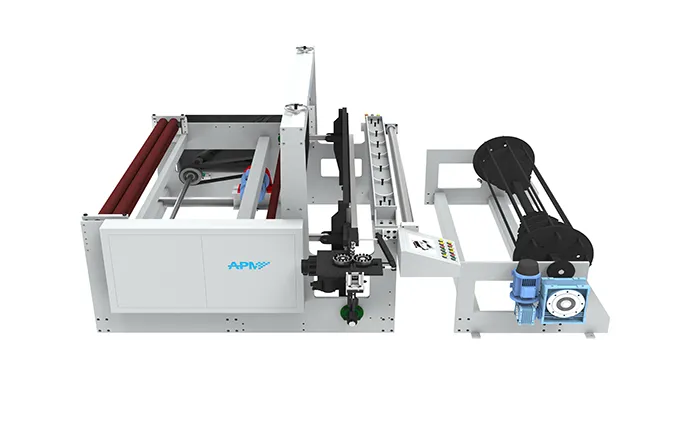

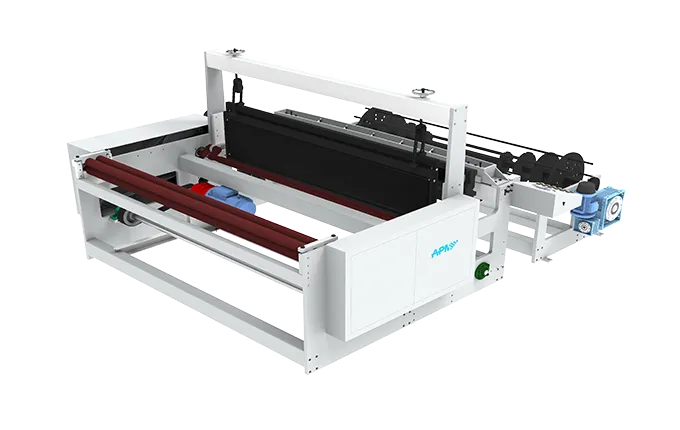

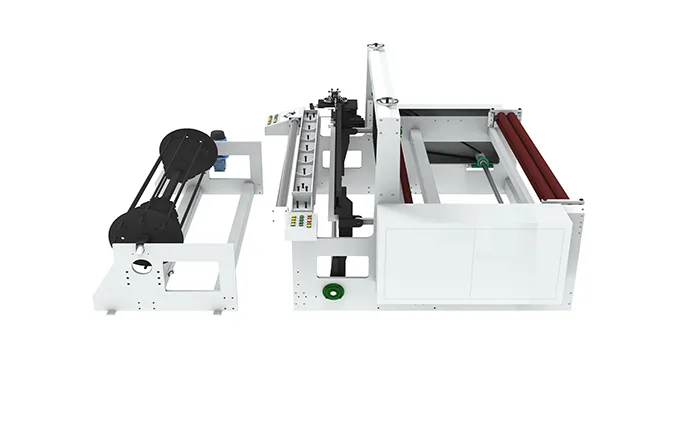

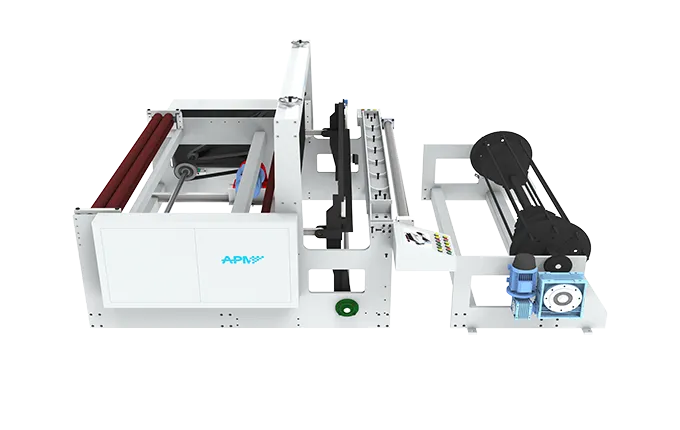

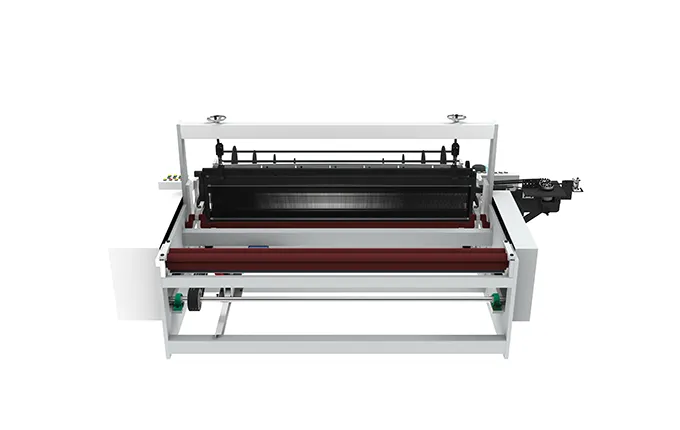

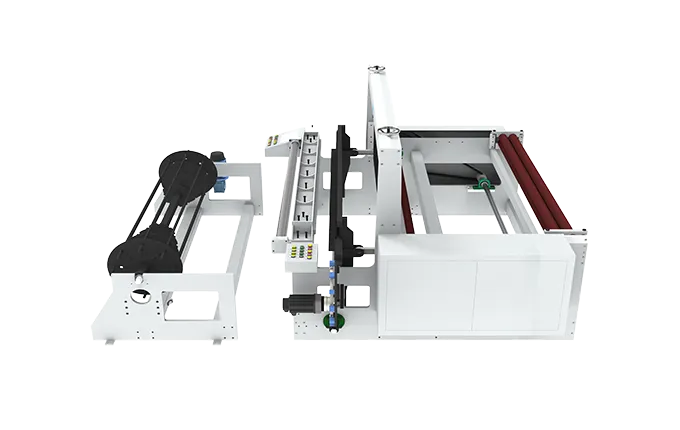

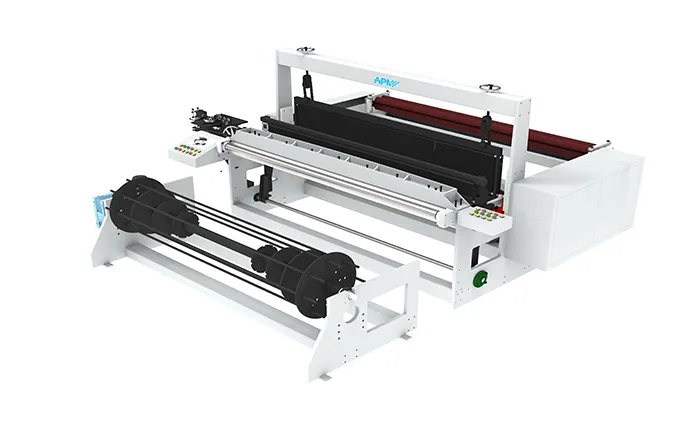

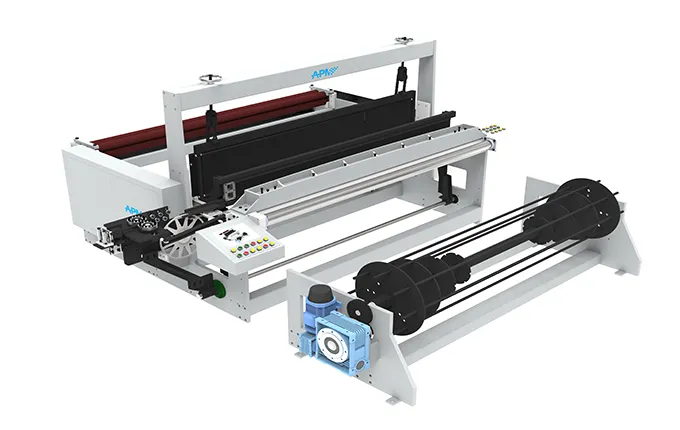

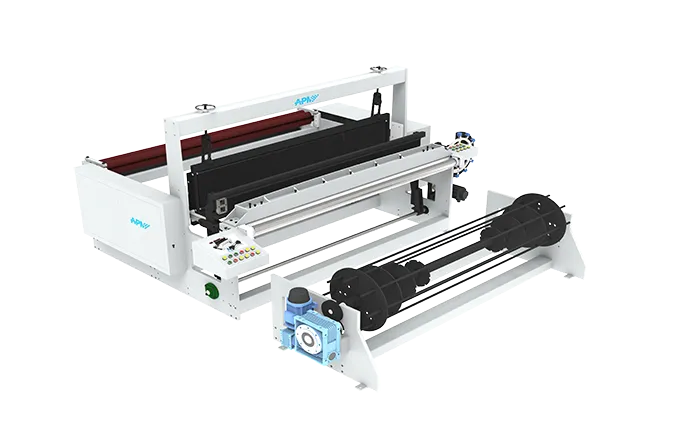

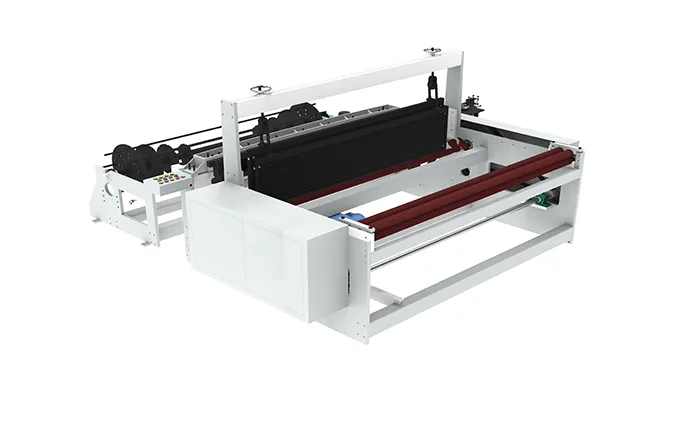

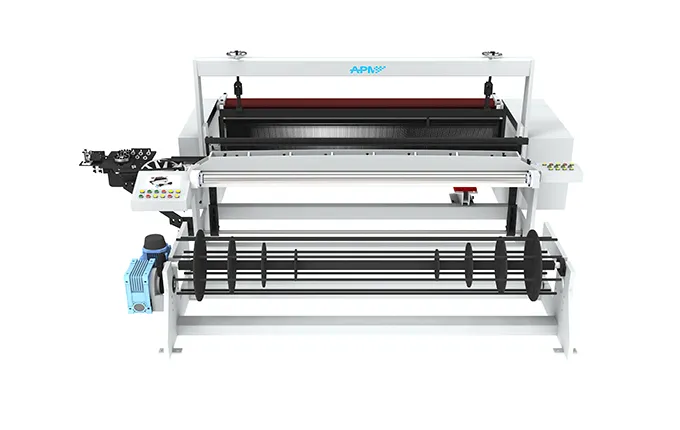

F101/102 and FC101 are automatic crimped wire mesh machines for the economic production of large production quantities.
| Crimped wire mesh machine | F101 | F102 |
| Name | Full automatic crimped wire mesh machine | Full automatic crimped wire mesh machine |
| Standard weaving width | 1300mm 1600mm 2000mm &2500mm | 1600mm, 2000mm &2500mm |
| Wire diameter | 0.70-2.0mm | 1.50mm-4.0mm |
| Net opening width | 1.50-15.0mm | 3.0-25.0mm |
| Wire Material | Stainless Steel ,Spring Steel 65mn etc | Stainless Steel ,Spring Steel 65mn etc |
| Weaving type | Double crimped, Inter crimped, | Double crimped, Inter crimped |
| Weft insertion | Single servo motor | Double servo motors |
| Heddle frame | Servo motor control 2pcs | Servo motor control 2pcs |
| Weft wire crimping machine | Separate wire crimping machine by servo motor | Separate wire crimping machine by servo motor |
| Weaving Speed | 30-60times per minute | 30-50times per minute |
| Main motor | 4.0KW or 5.5KW | 4.0KW or 5.5KW |
| Machine size | Weaving width+1400mmx2200mmx1800mm | Weaving width+1400mmx2200mmx1800mm |
Crimped Screen with wires in 1st crimp: t=m+d
Crimped Screen with wires in 3rd crimp: t=1/3(m+d)
Crimped Screen with wires in 5th crimp: t=1/5(m+d)
