Wire crimping machines are the right complement for the optimum preparation of the warp and weft wires for the crimped wire mesh machine. The crimping wheels decide the crimping type with the different wire diameter by the different wire crimping machines.

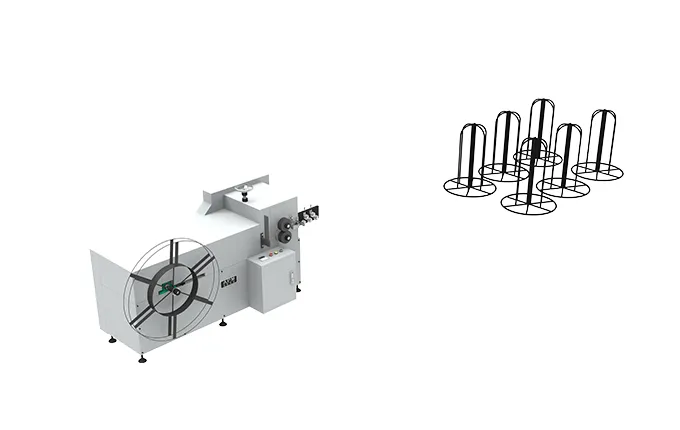

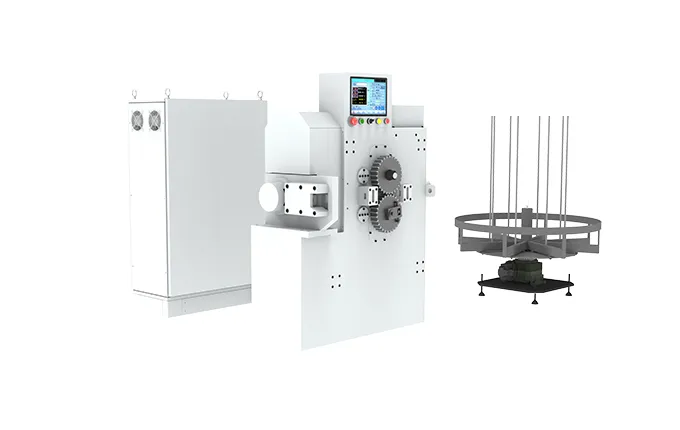

| Wire Crimping Machine | FC101 | SK20 | SK40 |
| Name | Wire crimping machine | Full PLC Wire crimping and cutting Machine | Full PLC Wire crimping and cutting Machine |
| Wire diameter | 0.7-2.0mm or 1.5-4.0mm | 1.0-1.0mm | 2.0-14.0mm |
| Wire material | Stainless steel , Spring steel 65Mn | Stainless steel , Spring steel 65Mn | Stainless steel , Spring steel 65Mn |
| Maximum speed | 30mtrs/mints | 30-45mtrs/mints | 20mtrs/mints |
| Main motor | 3.0KW |
|
|
| Crimping wheel OD | 120-130mm | 240-340mm | 330-380mm |
| Machine Size | 1300*1100*1280mm | 1200x1800x1500mm | 1200x2000x1500mm |
